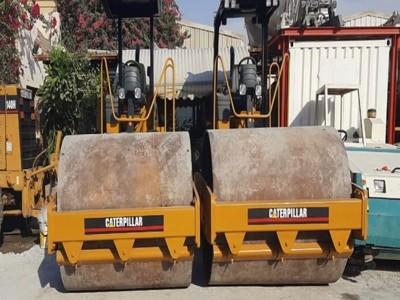

SOIL COMPACTOR
Manufacturer: Caterpillar
Model: CS533E
Year: 2010
Machine Type: Vibratory Soil Compactor / Single Drum Roller
Application: Soil compaction, road construction, site preparation, and embankment work.
Engine Model: Caterpillar 3054C
Engine Type: 4-cylinder turbocharged diesel
Gross Power: 97 kW (130 HP)
Net Power: approx. 93 kW (124 hp)
Displacement: 4.4 L
Operating Weight (with cab): 10,840 kg
Operating Weight (ROPS/FOPS): 10,485 kg
Drum Weight: approx. 5,760 kg
Overall Length: 5.51 m
Overall Width: 2.29 m
Overall Height: 3.07 m
Wheelbase: 2.9 m
Ground Clearance: 543 mm
Drum Width: 2,134 mm
Drum Diameter: 1,534 mm
Compaction Width: 2,134 mm
Static Linear Load: 27 kg/cm
Centrifugal Force: approx. 234 kN
Vibration Frequency: 31 Hz
Amplitude: 1.8 mm
Maximum Travel Speed: 12 km/h
Turning Radius (Inside Drum Edge): 3.68 m
Turning Radius (Outside): 5.81 m
Fuel Tank Capacity: 200 L
Hydraulic Oil Capacity: approx. 60 L
Cooling System: approx. 19 L
Smooth drum vibratory compaction system
High-performance Cat diesel engine
Excellent gradeability and traction
Comfortable operator station with ROPS/FOPS
Efficient soil compaction for roads and construction sites
