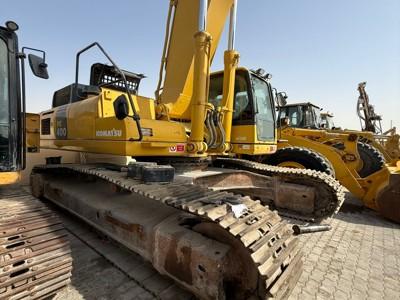

Komatsu PC400-8R (2014) – Specifications

General Information

• Manufacturer: Komatsu

• Model: PC400-8R

• Year: 2014

• Machine Type: Hydraulic Crawler Excavator

• Application: Heavy excavation, quarry work, road construction, mining, and large earthmoving projects.

Engine

• Engine Model: Komatsu SAA6D125E-5

• Engine Type: 6-cylinder turbocharged diesel

• Rated Power: 257 kW (345 HP) @ 1,900 rpm

• Displacement: approx. 11.0 L

Operating Weight

• Operating Weight: 41,000 – 42,100 kg (approx. 41–42 tons)

Bucket & Work Equipment

• Bucket Capacity: 1.3 – 2.8 m³ (standard around 1.9–2.1 m³)

• Boom Length: 7.06 m

• Arm Length: 3.38 m

Performance

• Maximum Digging Depth: approx. 7,620 – 7,820 mm

• Maximum Reach at Ground Level: approx. 11,800 – 12,000 mm

• Maximum Dumping Height: approx. 7,300 mm

Travel & Swing

• Maximum Travel Speed: 5.5 km/h (High) / 3.2 km/h (Low)

• Swing Speed: 8.8 rpm

Capacities

• Fuel Tank Capacity: 640 – 650 L

• Hydraulic System Pressure: approx. 34 MPa

Dimensions (Approx.)

• Overall Length: ~11.9 m

• Overall Width: ~3.6 m

• Overall Height: ~3.3 m

Features

• Powerful Komatsu diesel engine for heavy-duty digging

• Advanced hydraulic system for smooth and precise operation

• Large and comfortable operator cabin with air conditioning

• High stability and strong undercarriage for quarry and mining work

• Fuel-efficient design with improved productivity.
